Products

?
Products  Solution

? DONGYANGTMexteal pressure type SFX-N series module by NIPS(wet process) preparation of PVDF hollow fiber ultrafiltration membrane, with a long service life, high throughput, high anti-pollution capacity, water quality and stability characteristics.

? DONGYANGTM SFX-N Series ultrafiltration components structure of exteal pressure, selectable dead-end filtration, flow, runs two ways, ensuring that more than 90%.

? DONGYANGTM SFX-N Ultrafiltration using the safe and reliable design, gas flow distribution, water quality more broadly, the product can remain stable and reliable under extreme operating conditions.

? The company is based on many years of continuous innovation, development and investment, large-scale use in desalination, water And preparation of ultrapure water pretreatment and wastewater, water reuse and other fields.


SEM


? Characteristics of ultrafiltration technology

Long service life

? PVDF membrane material, oxidation resistance, high chemical resistance;

? Double seals at both ends, soft flexible roots not easily broken;

? Proprietary blend formula, high compressive and tensile strength


High flux and low energy consumption

? High surface porosity and uniform pore size, membrane resistance, high water flux;

? Exteal pressure structure, high filtration efficiency, large amount of dirt, easy to clean

Water quality stability

? Nominal pore size of 0.03 μ m,PVDF membrane material sieve apertures in the smallest one of the manufacturers;

? Membrane composed of a dense layer and the layer structure, high retention rate;

? Patented hydrophilic modification of permanent water, greatly improved stain resistance.


? Technical parameters

Category Project Model
SFX-N-2660 SFX-N-2860 SFX-N-2880
The membrane characteristics Membrane material PVDF
Filter Exteal pressure
/ Outer diameter mm 0.7/1.3
Effective membrane area m2 33 52 78
Filter pore size μm 0.03
Standard flux L/(m2. hr. Bar.25℃) ≥400
Design of water flux L/m2.hr 40-120
Cleaning pH Range 2-11
CEB Residual chlorine concentration mg/L 2000
Operating temperature ℃ 1-40
Maximum inlet pressure MPa 0.5
Maximum TMP MPa 0.21
Maximum turbidity of the water NTU 300
Single membrane gas strength m3/hr 5-12
Gas pressure MPa <0.2

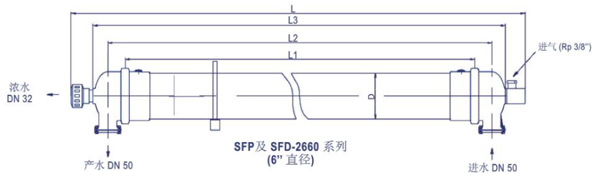

? Structure size

Model L L1 L2 L3
SFX-N-2660 1860 1500 1610 1710

Model L L1 L2 L3
SFX-N-2860 1860 1500 1630 1820
SFX-N-2880 2360 2000 2130 2320

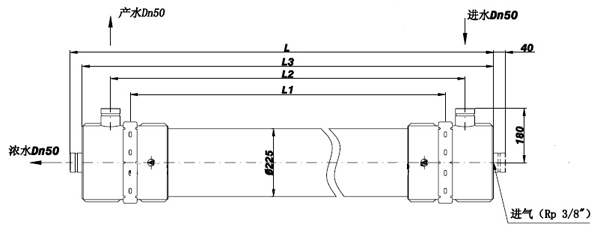

Model L L1 L2 L3
SFX-N-D-2860 1860 1510 1595 215
